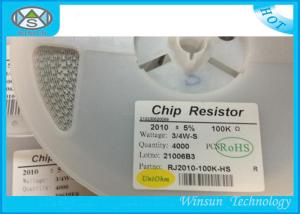

2010 Metal Oxide Film Resistor High Efficiency SMD Power Resistor For Instruments

Brand Name : WS

Model Number : WS-TFC-Res2010

Certification : SGS

Place of Origin : Shenzhen of China

MOQ : 4000pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 100000000pcs/day

Delivery Time : 3-5 work days

Packaging Details : plastic reel + carton

Product Name : Chip resistor

Efficiency : High

Size : 2010

Resistance : 0.1 ~22M Ω

Resistance Tolerance : 5%; 1%

Package : SMD

RoHS Compliant : Leaded free

Contact Now

2010 3/4W High Efficiency Low Cost Thick Film SMD Chip Fixed Resistor

We can make un-common product per customers requirements.

Features:

* Size: 2010
* Resistance Range: 0.1 ohm ~ 22M ohm
* Resistance Tolerance: ±5%; ±1%
* Advanced thin film technology
* Very tight tolerance down to +-0.01%
* Extremely low TCR down to +-5PPM/ºC
* Temperature Coefficient ± 100, ± 200
* Operating Temperature -55 degree~125 degree
* Packing: 5000PCS/reel, tape and reel
* Miniature and Light weight
* Suit for reflow and wave flowsolder
* Stable electrical capability. High reliability.
* Low assembly cost, suit for automatic SMT equipment
* Superior mechanical and frequency characteristics
* RoHS compliant

Applications:
Widely and largely used in the Electronic, Electronical and Information Industries.
Telecommunication equipments. Radio and Tape recorders
TV tuners, Video cameras, Watches
Pocket calculators, Automotive Industry (Indicator)
Computers, Instruments
Testing/Measurement Equipment

-Printer Equipment
-Automatic Equipment Controller etc...

2010 Metal Oxide Film Resistor High Efficiency SMD Power Resistor For Instruments

1. High purity alumina substrate
2. Protective covering
3. Resistance element
4. Termination (inner) Ni/Cr
5. Termination (between) Ni Barrier
6. Termination (outer) Sn

Performance Test:

Test Item	Test Condition	Performance
Temperature coefficient	Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate .	±100ppm/℃
Short time overload	2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds.	ΔR≤±(0.5%R0+0.05Ω)
Pulse overload	At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ).	ΔR≤±(1%R0+0.05Ω)
Resistance to soldering heat	Immerge into 350±10℃ tin stove for 2~3 seconds.	ΔR≤±(0.5%R0+0.05Ω)
Solderability	Immerge into 245±3℃ tin stove for 2~3 seconds.	The area of soldering is over 95%
Temperature cycling	At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles.	ΔR≤±(0.5%R0+0.05Ω)
Load life in humidity	Overload rated voltage or Max.working voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity.	ΔR≤±(2%R0+0.05Ω)
Load life in heat	Overload rated voltage or Max.working voltage (get the lower ) for 1000 hours (1.5 hours on and hal

2010 Metal Oxide Film Resistor High Efficiency SMD Power Resistor For Instruments
